Our Products:
1. Single Phasing Preventer (SPP) [Voltage & Current Sensing]
2. Auto Switch with SPP with variable Time Delay 1,3,5 minutees
Specially used for Agriculture
3. Single Phase Motor Starter with Overload & Dry Run Protection.
4. Three Phase Motor Starter with O/L,D/R,SPP,Auto/Man protection.
5. Singe Phase Submersible Control Panel With O/L,D/R Protection .
with Automatic Water LevelController & Timer system.(with software technology)
6. Three Phase Control Panel with SPP,D/R,O/L protection & with Automatic
Water Level Controller & Timer systems
7. Automatic Water Level Controller in different models(with software technology) for two Pump Operation.
8. ELCB+MCB (Home Protector)
9. Stabilizers (domestic for TV,Freeze,Air Conditioners).
10. Electronics Phase Changer.
11. Earth Leakage Relay.
12. Electronics Timer /Time Switch.
13. Generator Change Over Switch.
14. Electronics Ballast
15. Motor/Pump,Submersible Pump, Openwell Pump - Single & Three Phase.
16. Pressure Pump & booster Pump
MANALI: 1 Ø 3 Ø Submersible Openwell Control Panel (Microcontroller Based with Software Technology):
- SP 200: 1 Ø Submersible Control Panel with Set Switch.
- SP 250: 1 Ø Submersible Control Panel with Set Switch with Current Setting Pot.
- SP 300: 1 Ø Submersible Control Panel with Auto/Manual Switch.
- SP 350: 1 Ø Submersible Control Panel with Set Switch, Timer & Time Switch.

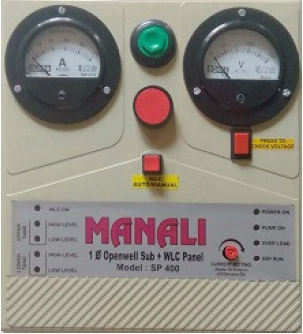

- SP 400: 1 Ø Submersible Control Panel with WLC Dry Run
- SP 500: 1 Ø Submersible Control Panel with Dry Run Timer (0 – 3 Hours) WLC
- SP 400: 1 Ø Submersible Control Panel with WLC Dry Run WLC Timer (0 - 10 Hours) in Digital Display.
- SPT 500: 1 Ø Submersible Control Panel with Timer.
- TP 300: 3 Ø Submersible Control Panel with SPP/OL/D/R, WLC / Timer Auto Manual Switch (0 – 10 Hours).
- TP 300: 3 Ø Submersible Control Panel with SPP/OL/D/R, WLC / Timer Auto Manual Switch (0 – 10 Hours) with MCB.
PROKON:
- W 100: Suitable for 1 Ø Domestic Pump as well as Openwell Pump up to 2HP
- W 200: Suitable for 1 Ø Domestic Submersible Pump & 3 Ø Star Delta Starter.
- W 300: Built in advanced “Pump Selector Logic” ; Suitable for where 2 Pumps are installed as Main Pump & Standby Pump (1 Ø & 3 Ø Pump). Both Pump will work On/Off automatically & alternatively on Sensor Float Base.
- Sp 150: 1 Ø submersible control panel with Overload & Dry Run Protection up to 2HP.
- PROKON Auto Switch: Auto Start with 1-3 minutes time delay with wire SPP Auto Manual Switch.
Other Products:
- Float Switch (2-3-5 Mtrs.)
- Sensors with Wire
- Wire (Specially for Sensors 2 Core, 3 Core, 4 Core)
- Overflow Alarm with Sensor
- Timer
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
CONTROL PANEL SPECIFICATIONS OF MANALI |
| SR.NO. |
Description |
Technical Specifications |
| 1 |
Operating Voltage |
230V, 50 Hz AC |
| 2 |
System Operating Voltage |
3.3V DC |
| 3 |
Power Contactor Rating |
30A Load current |
| 4 |
Voltmeter
Amp meter |
300V Analog type
20 A Analog type |
| 5 |
Controls |
On /
Off
WLC On/OFF
Press to check voltage
Start/Stop |
| 6 |
Sensing technology |
Current sensing |
| 7 |
Site selectable Pump current
Setting |
1-20 Amp |
| 8 |
Dry run setting |
75% to 95% |
| 9 |
Protections |
Overload T.T.D 15 sec +/- 2 sec
Dry run T.T.D 15 sec +/- 2 sec
Starting capacitor cut off - T.T.D 15 sec +/- 2 sec
|
| 10 |
Overload |
20 to 40 %
|
|
PRESS FOR 5 SECONDS TO PROGRAM
Sr.No. |
Parameter |
From |
To |
Unit |
1 |
Auto Start Timer |
1.00 |
3.00 |
Minutes |
2 |
Dry Run |
75 |
95 |
% |
3 |
Dry Run Timer |
0.00 |
9.59 |
Hours |
4 |
Overload |
20 |
40 |
% |
|
MANALI :
|
|
|
|
|
SP 200 |
|
SP 250 |
|
SP 300 |
| |
|
|
|
|
|
|
|
|
|
SP 350 |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
SP 600 |
|
TP 300 with MCB |
|
TP 300 |
| |
|
|
|
|
|
|
|
|
|
SP 300 with On Off Timer |
|
SP 450 |
|
SPT 500 |
| |
|
|
|
|
|
|
|
|
|
TP 300 |
|
SP 300 |
|
SP 400 |
|
|
|
|
|
SP 450 |
|
SP 300 |
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| ------------------------------------------------------------------------------------------------------------------------------------ |
PROKON :
|
|
|
|
|
|
|
|
|
|
|
|
W 100 |
|
W 200 |
| |
|
|
|
|
|
|
|
|
|
W 300 |
|
AUTOSWITCH |
|
|
| |
|
|
|
|
|
|
|
|
|
Model W300 (I) with Auto Manual |
|
SP 100 |
|
Water Level Controller |
| |
|
|
|
|
|
|
 |
|
 |
|
|
WLC 100 |
|
WLC 200 |
| |
|
|
|
|
 |
|
 |
|
 |
|
|
|
|
|
| |
|
|
|
|
 |
|
 |
|
 |
|
|
|
|
|
| |
|
|
|
|
| ------------------------------------------------------------------------------------------------------------------------------------ |
OTHER PRODUCTS :
|
|
|
|
|
|
|
|
|
|
ELECTRONIC BALLAST |
|
FLOAT SWITCH |
|
SENSORS |
| |
|
|
|
|
|
|
|
|
|
TIMER |
|
WATER OVER FLOW ALARM |
|
WIRE |
| ------------------------------------------------------------------------------------------------------------------------------------ |
| |
|
|
|
|
